XY-Stage Post Holder

Product Number: PG002

Product Material: PLA/PETG

Description:

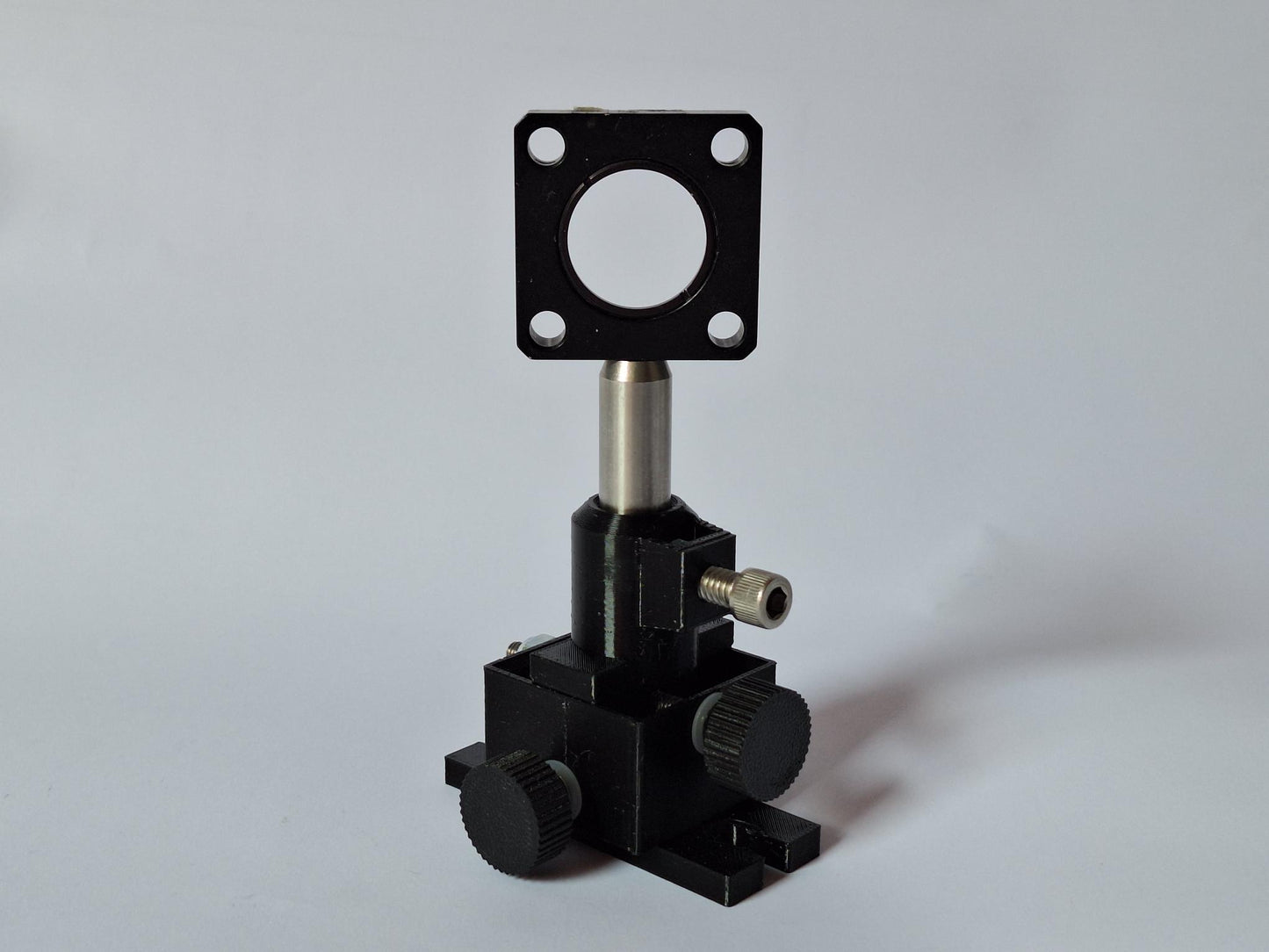

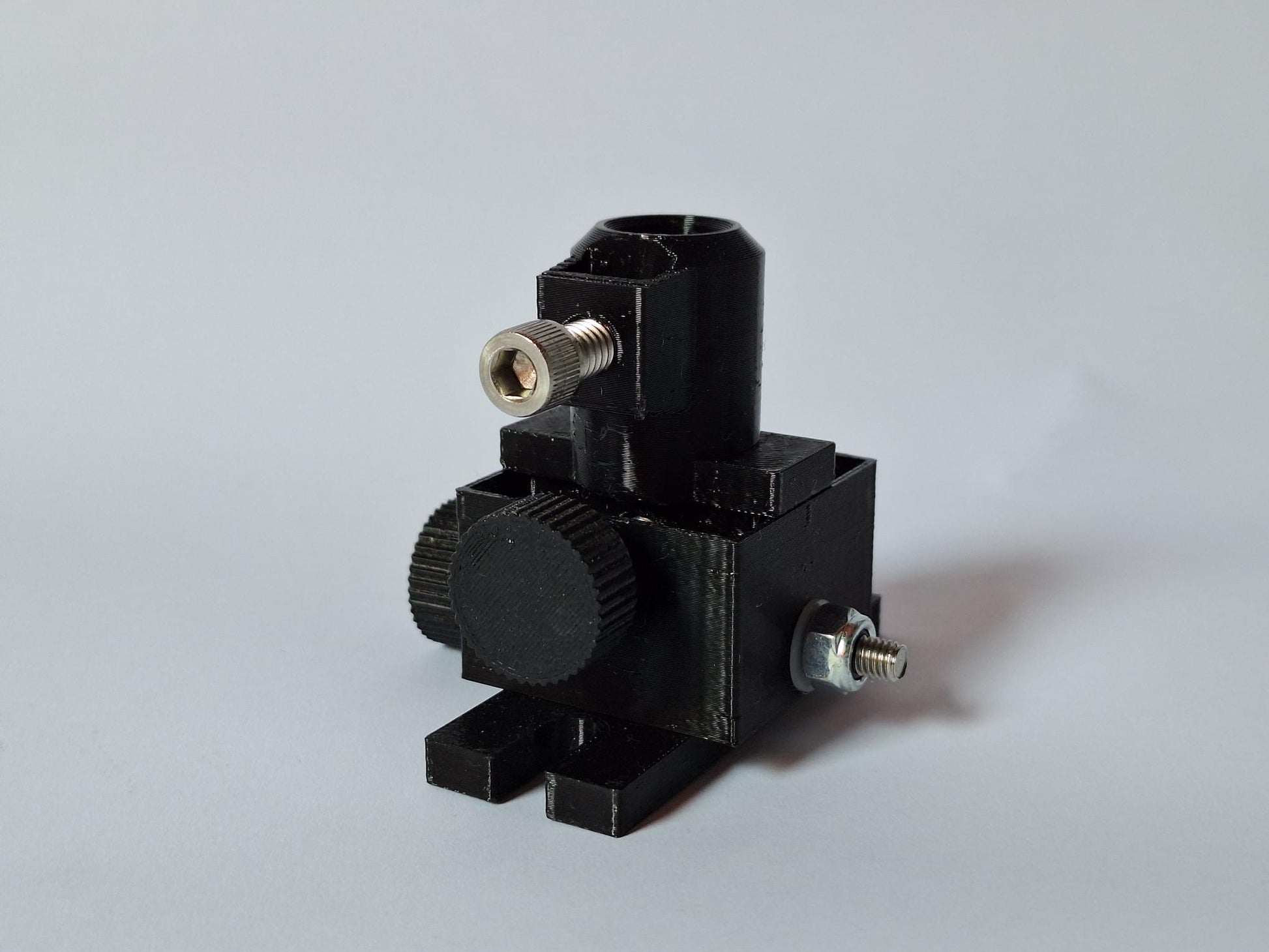

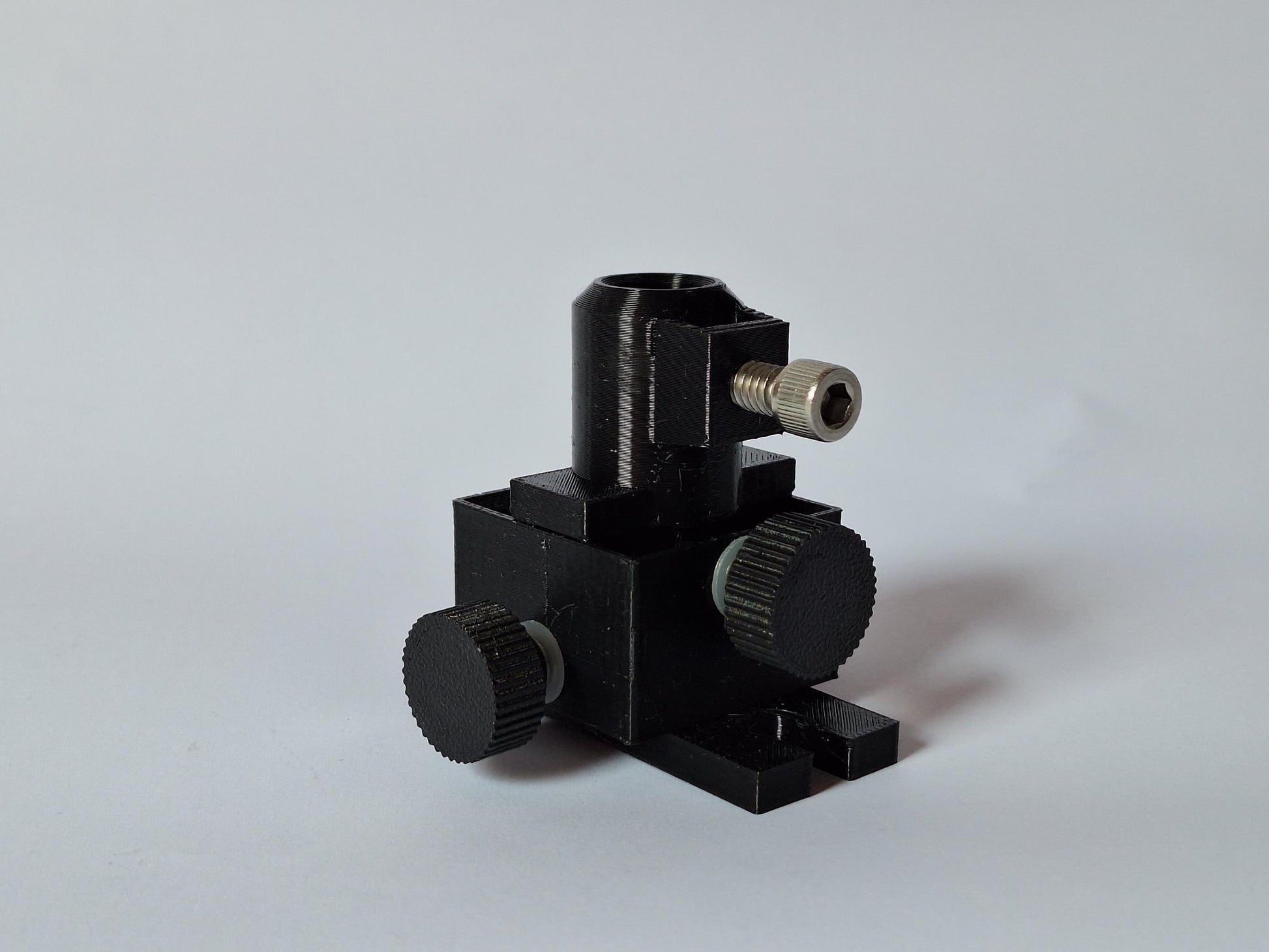

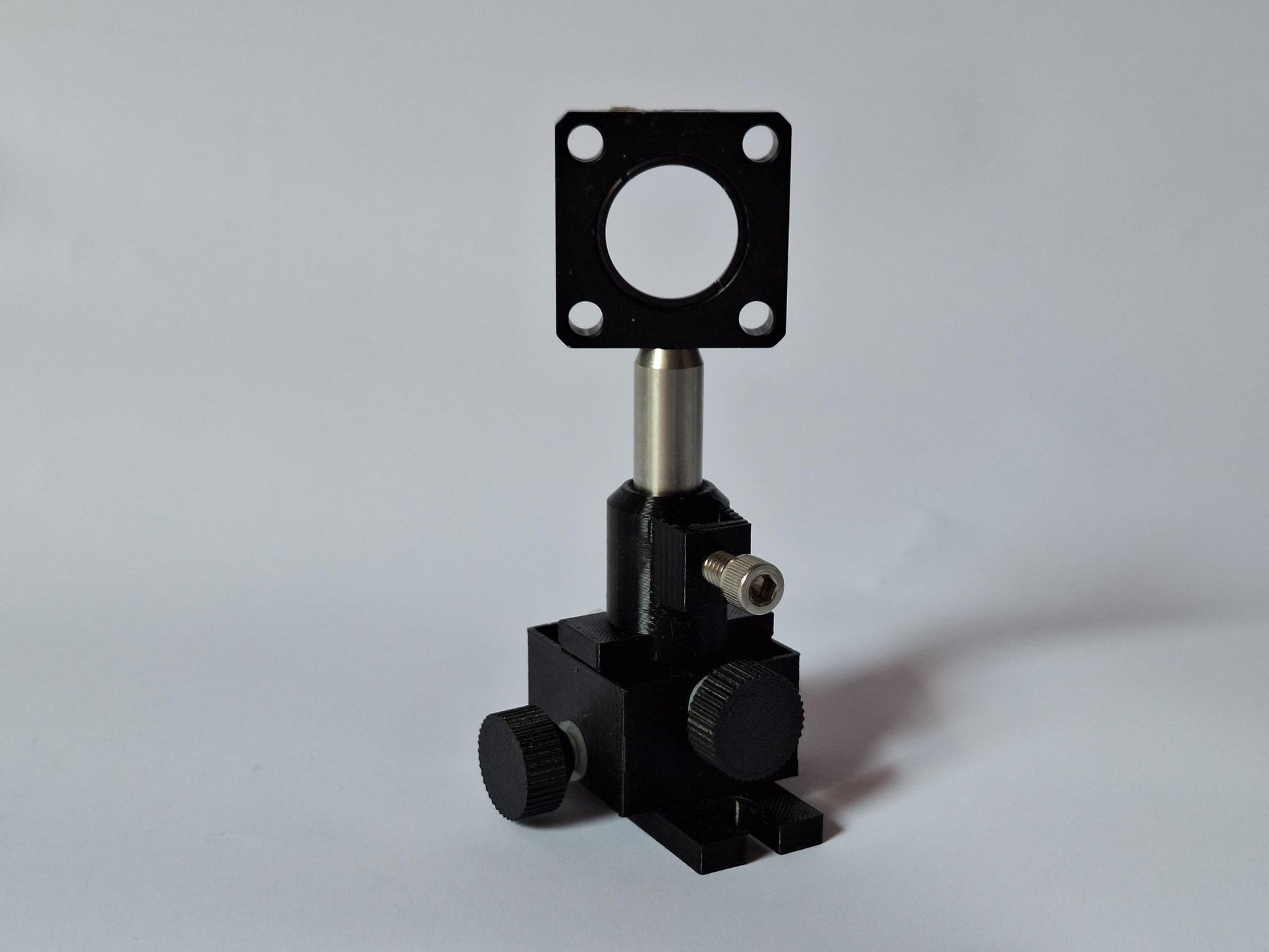

Post holder on an adjustable X-Y directional stage that fits standard 1/2 inch diameter optical posts. Slotted base is designed to accommodate 1/4 inch diameter screws on an imperial optical breadboard. Holder internal diameter and base are slightly oversized to accommodate metric optical components as well. Post is held in place with 1/4 inch screw and a captive nut to ensure that height is accurately maintained. The X-Y stage features two knurled knobs, each for fine control in the X and Y directions. The stage is designed to provide 32 mm of movement in each direction. This product offers highly precise positioning capabilities in a compact package with its fine-screw adjustments at an affordable cost!

Dimensions:

60 mm tall, Base is 3 inches in length. Stage is 2-1/2 inches in width/ depth.
